The Audient ORIA is a high-quality immersive audio interface and monitor controller that provides exceptional sound and precision control. With industry-leading technology and advanced features, experience unparalleled audio quality and enhance your workflow with ease. Perfect for professionals and enthusiasts alike.

Meet ORIA, the world’s first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.

Designed with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.

Advanced Speaker Processing

Working with multi-channel speaker setups requires a precisely calibrated room but let’s face it, calibrating your room is a difficult and time consuming process.
But what if it didn’t have to be?

ORIA’s Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups making reference checking your mix in different formats a breeze. Add to that the ability to calibrate your room in one of two ways.

Either create a Profile by manually taking room measurements and dialling in the calibration settings or take advantage of upgrading to SoundID Reference…



Features



Hardware Features:

• Supports up to 9.1.6 Speaker Setups
• 2 x 16 Channel Surround Outputs (Analogue & AES)
• 2 x Stereo Line Outputs (Relay Switched)
• 2 x Independent Stereo Headphone Outputs
• 2 x Audient Mic Preamps (Mic / D.I / Line)
• 2 x ADAT Inputs
• Word Clock Input

• Word Clock Output
• ORIA Motion UI
• 24 bit / 96kHz
• USB 2.0 / USB Type-C
• Sonarworks SoundID Reference Measurement Microphone Included
• Optional AoIP Card (Dante) for 16 Input channels



Software Features:

Immersive Monitoring Control

• Input / Output Switching
• Master Volume Control
• Global Delay (lip sync)
• Individual Speaker Solo & Mute
• Speaker Group Solo & Mute
• Per Channel Metering (pre & post)
• Down Mix Cycling – Dolby Renderer Integrated
• Programmable Function Button

iPad Control App

Onboard Room Calibration DSP

• Per Output EQ
• Per Output Delay
• Per Output Trim
• Per Output Crossover (Bass Management)
• Profile Switching – Sonarworks Integrated
• Configurable Global Bypass



Specifications

Microphone Inputs



Gain: 60dB

Max Input Level: +18dBu

Crosstalk: <105dB

THD+N: 0.0015% / -96dB

EIN: -129dB

CMRR: -85dB

SNR: 100dB

Frequency Response: ±0.5dB 20Hz to 40kHz

Input Impedance: 1.5kΩ Balanced

Line Inputs



Gain: -10dB to +50dB

Max Input Level: +18dBu

THD+N: 0.0015% / -96dB

Input Impedance: 4.7kΩ Balanced





D.I / Instrument Input



Gain: 60dB

Max Input Level: +18dBu

THD+N: 0.16%

SNR: 100dB

Frequency Response: ±0.5dB 20Hz to 40kHz

Input Impedance: 370kΩ Unbalanced





Line Outputs



Lineup Level: +18dBu

THD+N: 0.0006%, -105dB

Dynamic Range: 126.5dB

Crosstalk: -123dB

Frequency Response: ±0.3dB 10Hz to 40kHz

Output Impedance: <100Ω Balanced





Headphone Outputs



Lineup Level: +18dBu

THD+N: 0.0007% (-103dB)

Dynamic Range: 124dB

Crosstalk: -115dB

Frequency Response: ±0.25dB 10Hz to 40kHz

Output Impedance: <50 Ω Unbalanced

Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW

Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW

Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW





USB-C



Connector: USB Type C

Included Cable: USB Type-C to Type-C

Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP*)

Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)

*With AOIP card fitted





Digital Inputs



ADAT 16 Channels: 44.1kHz to 48kHz

ADAT 8 Channels (SMUX): 88.2kHz to 96kHz





Digital Outputs



AES Outputs: 16 Audio Channels (8x AES Data Streams)





Word Clock Input and Output



Word Clock: 44.1kHz to 96kHz





DSP Latency



Round Trip:

44.1kHz – 6.5ms

48kHz – 6.3ms

88.2kHz – 5.5ms

96kHz – 5.4ms





AOIP (Optional Dante Expansion Card)



AOIP Inputs: 16 (44.1kHz to 96kHz)





Power Supply



Input Voltage: 85 – 264 VAC

Input Frequency: 47 – 63Hz

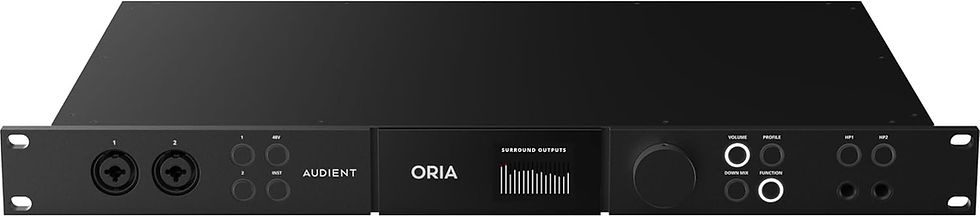

Audient ORIA - Immersive Audio Interface and Monitor Controller
