Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD4’s Audient mic pre will give you the professional sound you deserve. iD4’s converters make sure you hear every nuance, every detail of your audio, letting you hear your mix more accurately. Work faster, make better creative decisions and experience professional audio performance from your desktop.

Equipped with both a jack and mini jack connection and a powerful headphone amp capable of driving headphones up to 600Ohms, iD4 is ready to take on the most demanding recording sessions.

Designed to replicate the input stage of a classic valve amplifier, iD4’s harmonically rich JFET Instrument Input is the perfect sonic foundation for your guitar or bass.



Specifications

D.I / Instrument Input

RANGE:40dB
LINEUP:12dBu = 0dBFS
THD+N @ 0dBu:0.1%
SNR:100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN±0.5dB 10Hz to 20kHz



Microphone preamplifier

GAIN RANGE:58dB
LINEUP:12dBu = 0dBFS
MIC MAX INPUT LEVEL:12dBu
MAX INPUT LEVEL:21dBu
INPUT IMPEDANCE (Mic):2.8k
INPUT IMPEDANCE (Line):>8k
THD+N @ 0dBu0.00170%
THD+N @ 0dBu MAX GAIN:<0.04%
SNR:101dBu A-Weighted
EIN:129dB A-Weighted
CMRR @ 1k:>75dB
FREQUENCY RESPONSE – MIN GAIN±0.5dB 10Hz to 40kHz



Analogue to Digital Converter

THD+N @ -1dBFS:0.001%
DYNAMIC RANGE:120dB A-Weighted
FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz



Line Outputs (DAC):

LINEUP:12dBu = 0dBFS
THD+N @ -1dBFS:0.0006%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>120dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)



Headphone Outputs:

LINEUP:18dBu = 0dBFS
THD+N @ -1dBFS:0.0009%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>116dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R:2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R:4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R:7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK:Tip (Left), Ring (Right) & Sleeve (Shield)



USB-C High Speed:

BUS POWER:
MIN REQUIREMENT:0.9A @ 5V>=USB 3.0 Port
MAX REQUIREMENT:1.5A @ 5VUSB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS:2 (2 Analogue)
No. of OUTPUT CHANNELS:2 (2 Analogue)
DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz0.65mS
 48.0kHz0.6mS
 88.2kHz0.33mS
 96.0kHz0.31mS

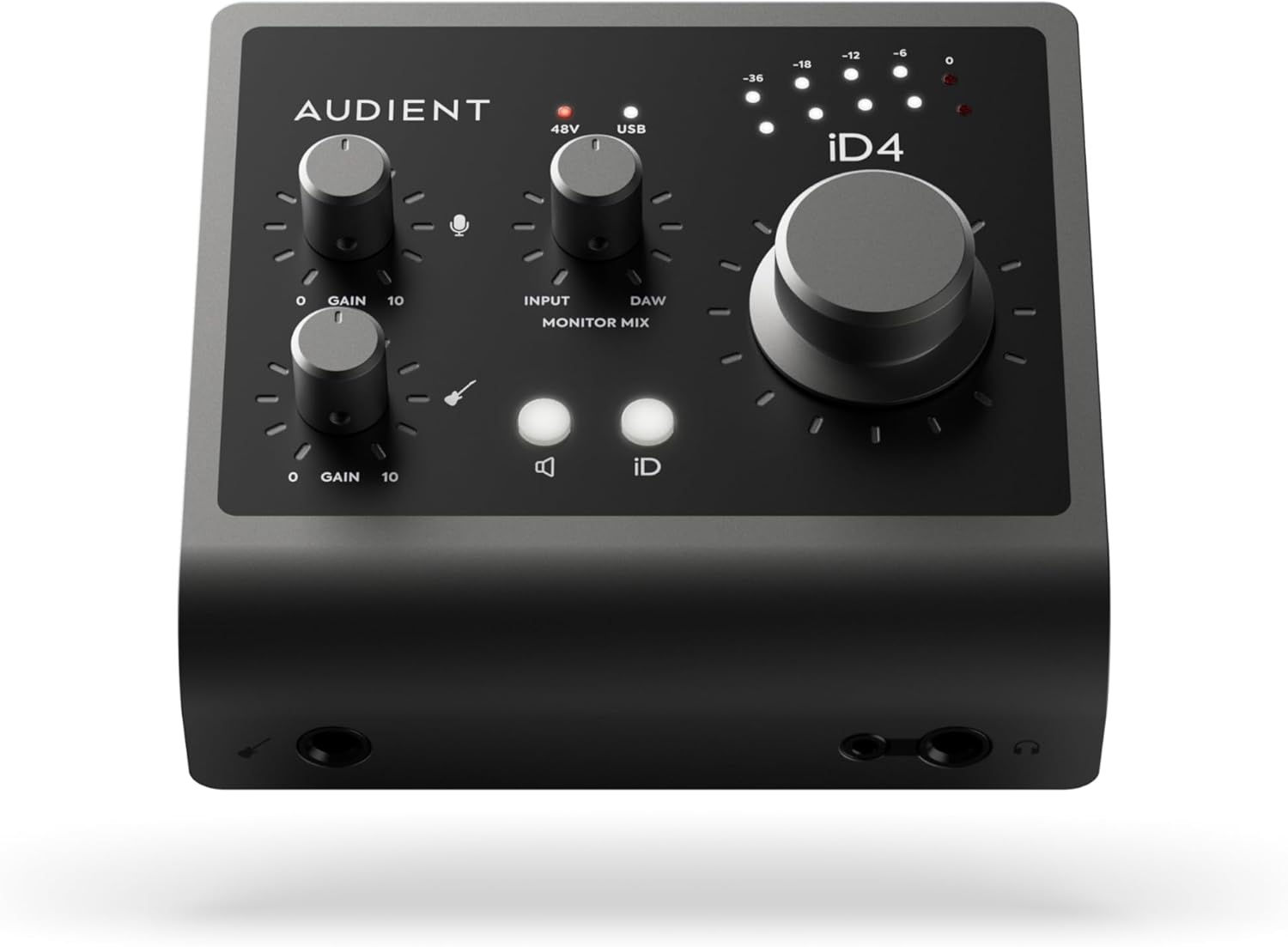

Audient iD4 (MKII) 2in | 2out Audio Interface

₦270,840.00Price
Out of Stock
