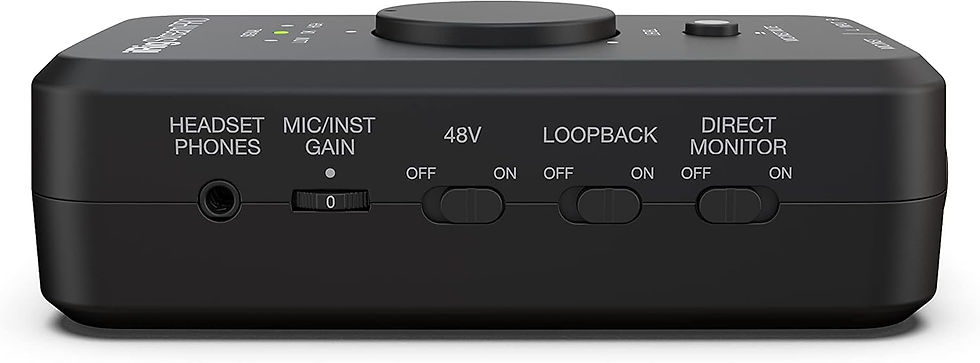

iRig Stream Pro

4-in, 2-out streaming audio interface

The original iRig Stream offered groundbreaking features that made it an overnight must-have for millions of creators. Now iRig Stream Pro takes your podcasting and streaming to an all-new level.

This 24-bit, 96 kHz audio interface for iPhone, iPad, Android and Mac/PC offers an XLR mic preamp, stereo RCA, TRRS and device inputs (loopback) - plus advanced routing, convenient controls and total portability.

It’s everything you need for professional quality streaming, right in the palm of your hand.

iRig Stream Pro makes it easy to connect all your audio sources and route them to a streaming or recording app. Connect your favorite studio microphone or guitar via the XLR / 1/4” combo jack, mix in DJ decks or a keyboard via the stereo RCA inputs, then connect your earbuds to listen back and for a bonus mic/line input. You can even route in the output of your smartphone, tablet or laptop and sing or jam along.

Specs

iRig Stream Pro Specifications

Common

  • Type: 2 in/2out or 4 in/2out
  • Conversion: 24-bit A/D, 24-bit D/A
  • Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Power: USB bus powered. 48V operations with iOS devices require battery or DC IN. When connected to an external PSU (iRig PSU 3A, not included), iRig Stream Pro charges the connected iOS lightning device.
  • Metering: 3x LEDs for overall streaming signal. Peak meter for Mic/Inst input.
  • Device Connection: mini-DIN
  • Dimensions: 123 mm/4.84” x 67 mm/2.63” x 40 mm/1.57”
  • Weight: 146g

Line input

  • Connector: 2x RCA (unbal.) Left/Right
  • Nominal Input Level: -10 dBV
  • Head Room: 10 dB - Level @ max
  • Input Impedance: 16.5k Ohms
  • Frequency Response: from 20 Hz to 20 kHz (-1.5 dB)

Microphone Input

  • Microphone Input: balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Microphone Input Level: from 3.8 mV RMS to 388 mV RMS
  • Microphone Input Impedance: approx 2 kOhms
  • Analog Gain Range: 40 dB
  • Phantom Power: +48 V ± 4 V
  • Frequency Response:
    from 20 Hz to 20 kHz (-1 dB) Gain @ min
    from 20 Hz to 20 kHz (-3 dB) Gain @ max

Instrument Input

  • Instrument Input: unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
  • Instrument Input Level: from 70 mV RMS to 1.8 V RMS
  • Instrument Input Impedance: 1M Ohms
  • Analog Gain Range: 28 dB
  • Frequency Response:
    from 20 Hz to 20 kHz (-1 dB) Gain @ min
    from 20 Hz to 20 kHz (-3 dB) Gain @ max

Headset/Phones

  • Connector: 1/8” TRRS jack (CTIA wiring standard)
  • Supply voltage: > 2,5 V
  • Microphone gain: Adjustable with numbered thumbwheel
  • Frequency Response: 20 Hz – 20 kHz
  • Headphone Level control: numbered thumbwheel

IK Multimedia iRig Stream Pro

₦352,000.00Price
Out of Stock
